What is keil uvision STM32?

 Keil uVision is an integrated development environment (IDE) primarily used for embedded systems development. It is widely used for programming microcontrollers, and it supports various architectures, including the ARM Cortex-M series, which is the core of many STM32 microcontrollers.



STM32 is a family of 32-bit microcontrollers from STMicroelectronics based on the ARM Cortex-M cores (Cortex-M0, M3, M4, M7, etc.). These microcontrollers are popular for a wide range of embedded applications, from simple devices to complex systems.

Keil uVision and STM32:

  1. Keil uVision IDE:

    • Keil uVision is a development environment that integrates many essential tools like code editors, compilers, debuggers, and simulators. It's part of Keil MDK (Microcontroller Development Kit), which is a commercial toolchain.
    • It provides an easy-to-use environment for developing, compiling, debugging, and simulating embedded software, especially for ARM-based microcontrollers, including STM32.
    • Keil's uVision IDE integrates the ARM C/C++ Compiler (also known as the ARM Compiler), a powerful tool for compiling ARM Cortex-based code efficiently.

  2. Key Features of Keil uVision with STM32:

    • Project Creation: You can create and manage projects for STM32 microcontrollers easily, defining peripherals, clock settings, and pin configurations.
    • Code Editing: Offers an advanced code editor with syntax highlighting, code completion, and other development tools to write C, C++, and assembly code.
    • Debugging: Supports in-circuit debugging (using tools like J-Link, ST-Link, or ULINK) for STM32 microcontrollers. You can set breakpoints, step through the code, inspect variables, and watch registers.
    • Simulation: Keil uVision has a built-in simulator for ARM-based microcontrollers, allowing you to simulate the behavior of your program before flashing it to hardware.
    • Real-time Operating System (RTOS) Support: Keil provides RTX RTOS, which you can integrate with STM32 to manage tasks, interrupts, and multi-threading.
    • Peripheral and Hardware Configuration: Keil provides easy integration with STM32 peripherals like UART, I2C, SPI, ADC, and GPIO. It also allows for configuration via STM32CubeMX-generated files.
    • Optimization: The ARM Compiler used in Keil is highly optimized for ARM Cortex-M cores, making your code run efficiently on STM32 microcontrollers.

  3. Why Use Keil uVision for STM32?

    • Ease of Use: The Keil uVision IDE is designed to be user-friendly, even for beginners, while still offering powerful features for advanced users.
    • Efficient Code Generation: The ARM compiler provides highly optimized code, essential for resource-constrained embedded systems.
    • Comprehensive Debugging Tools: The IDE's debugging tools allow you to efficiently troubleshoot and optimize your code.
    • Wide Ecosystem Support: STM32 is one of the most popular microcontroller families, and Keil provides comprehensive support, including libraries, middleware, and peripheral drivers for STM32.
    • Community and Documentation: There is extensive documentation, tutorials, and community support available for both STM32 and Keil users.

  4. Getting Started with Keil uVision for STM32:

    • Install Keil uVision: First, download and install the Keil uVision IDE. You can obtain the free version (with some limitations) or purchase a license for full functionality.
    • STM32CubeMX Integration: Although Keil uVision can be used standalone, it integrates very well with STM32CubeMX, a tool provided by STMicroelectronics for configuring STM32 microcontrollers. STM32CubeMX helps with peripheral initialization, clock configuration, and even generating code for use in Keil uVision.
    • Write Code: Once the project is set up, you can start writing your application code in C or C++.

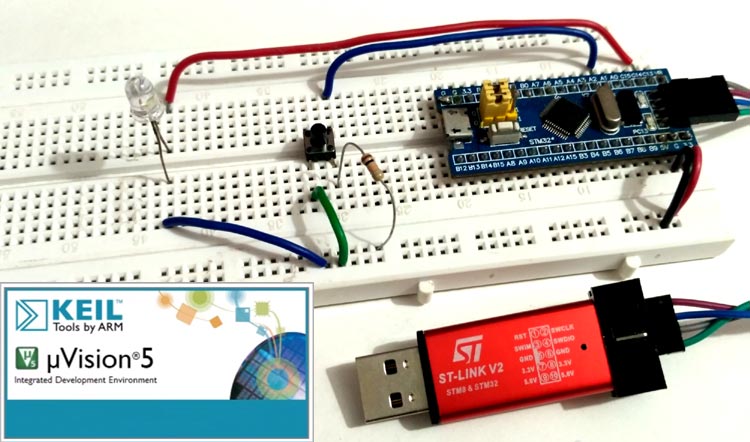

    • Compile and Flash: After writing your code, you can compile it within the IDE and upload it to the STM32 microcontroller using a compatible programmer/debugger (e.g., ST-Link).
    • Debugging: Use the built-in debugging tools to test your code on actual hardware and identify any issues.

Summary:

  • Keil uVision is a powerful and user-friendly IDE used for embedded systems development, particularly for ARM-based microcontrollers like the STM32.
  • It integrates various tools (compiler, debugger, simulator) and simplifies the development process for STM32-based projects.
  • Keil uVision is ideal for both beginners and advanced developers due to its extensive features, optimizations, and wide support for STM32 hardware.
